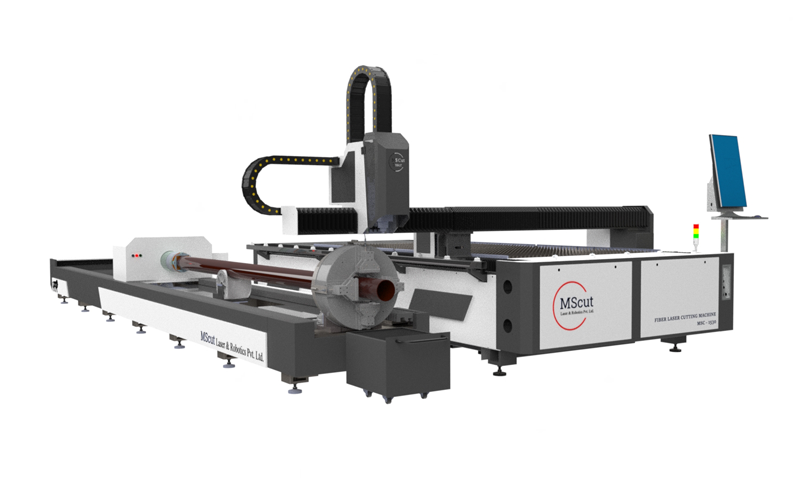

Single Table Tube & Plate fiber Laser Cutting Machine (1000W - 12000W)

Machine Features

  • One Machine with Two Functions

  • Intelligent CNC System

  • Double Pneumatic Chucks

  • Open Structure, Convenient Loading & Unloading

Rotary Specifications And Rear Chuck

Items Specificaon
ModelDR-R220
Spindle Boref218 mm
Inertia6000 kg*cm2
Repeatability≤ 0.1 mm
Rotary Precision≤ 0.15 mm
Processing range0-228 mm
Rated Speed150 rpm
Pipe Section ShapeSquare, Round, Rectangle, Angle, L shape and I-beam

One Machine with Two Functions

ST series can cut both tube and plate metals, combining a tube laser cutting machine and plate laser cutting machine. Save purchasing costs One machine with multi-function Save working space.

Double Pneumatic Chucks

2~3 times faster than traditional electric chucks 2 rows of rollers are adopted for a wide range of clamping and high cutting precision. Dual support frame for 6m tube Φ20-220mm 20-150mm 20-150mm Channel & angle steel available.

Intelligent CNC System

It support multiple graphic files include DXF, PLT,DWG, AI, G-code, IGS (tube cutting). It is compatible with other nesting software also. Support multi-brand nesting software One-key switch between tube cutting & plate cutting Multi language support Auxiliary gas low pressure & cutting error alarm Safety warning light.

Open Structure, Convenient Loading & Unloading

Saving Space Tube cutting and plate cutting combined in one machine. Not only help user save purchasing cost 30%~50%, but also save 50% working space.

Product Parameters

Model MST-T160 MST-T220 MST-T230 MST-T350
Working Area1550×3050mm2050×4050mm2050×6550mm2550×6550mm
Max Linkage Speed120m/min120m/min120m/min120m/min
Max Acceleration1.0G1.0G1.0G1.0G
Positional Accuracy+0.03mm+0.03mm+0.03mm+0.03mm
Re-positional Accuracy+0.02mm+0.02mm+0.02mm+0.02mm
Pipe Section ShapeRound/Square Tube/RectangularRound/Square Tube/RectangularRound/Square Tube/RectangularRound/Square Tube/Rectangular
Tube Size Range T160 : Round : F16- F155mm Square : □16- □155mm Rectangular : Long Side=155mm T220 : F20- F220mm Square : □20- □220mm Rectangular : Long Side≤220mm T160 : Round : F16- F155mm Square : □16- □155mm Rectangular : Long Side=155mm T220 : F20- F220mm Square : □20- □220mm Rectangular : Long Side≤220mm T160 : Round : F16- F155mm Square : □16- □155mm Rectangular : Long Side=155mm T220 : F20- F220mm Square : □20- □220mm Rectangular : Long Side≤220mm T160 : Round : F16- F155mm Square : □16- □155mm Rectangular : Long Side=155mm T220 : F20- F220mm Square : □20- □220mm Rectangular : Long Side≤220mm
