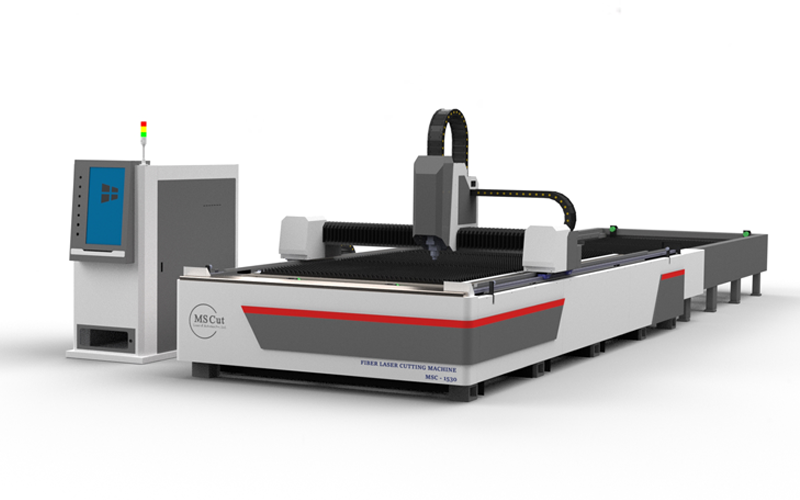

Open Exchange Table fiber Laser Cutting Machine (1000W - 20000W)

Machine Features

  • Exchanging Platform

  • Extruded Aviation Aluminum Beam

  • Autofocus Laser Head, Active Collision Prevention

  • Intelligent CNC System

  • EtherCAT Protocol

Product Parameters

Model MS-E1530 MS-E2040 MS-E2065 MS-E2565
Working Area1550x3050mm2050x4050mm2050x6550mm2550x6550mm
Pallet Exchange Time25s35s40s50s
Max Linkage Speed120m/min120m/min120m/min120m/min
Max Acceleration1.0G1.0G1.0G1.0G
Positional Accuracy±0.03mm±0.03mm±0.03mm±0.03mm
Re-positional Accuracy±0.02mm±0.02mm±0.02mm±0.02mm

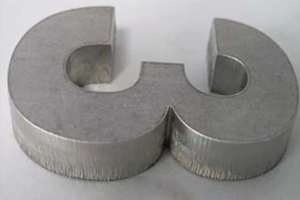

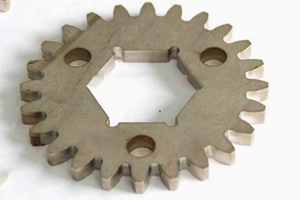

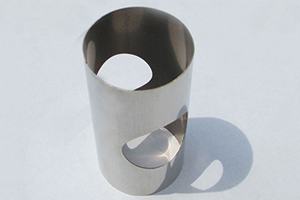

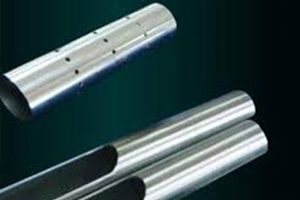

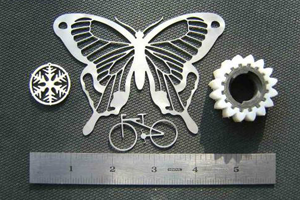

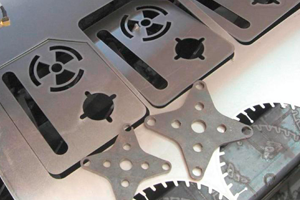

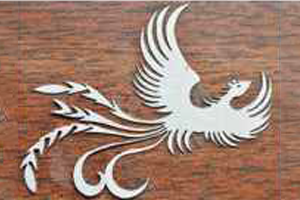

Sample Photo
