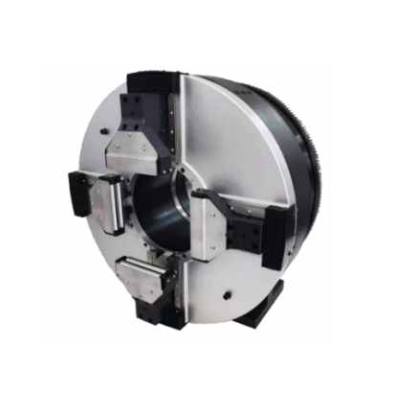

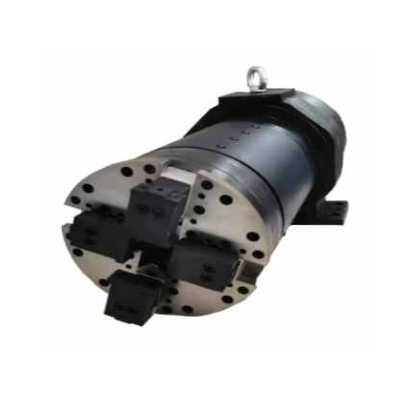

| Items | Specificaon |
|---|---|
| Model | DR-F220 |
| Spindle Bore | Φ225 mm |
| Inertia | 50000 kg*cm2 |
| Repeatability | ≤ 0.05 mm |
| Rotary Precision | ≤ 0.05 mm |
| Processing range | 15-220 mm |
| Rated Speed | 150 rpm |
| Pipe Section Shape | Square, Round, Rectangle, Angle, L shape and I-beam |
It is welded by thick steel plate, the current mainstream bed structure, high stability; High temperature annealing treatment, less heat absoption, deformation prevention.
It employs intelligent tube support design which can solve the deformation problems in the process of long tube cutting.

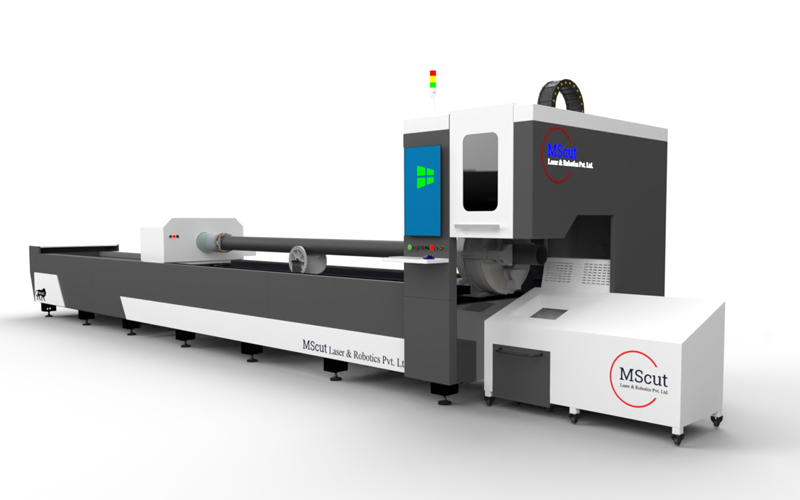

Specially developed for tube processing. It supports high-precision and high-efficiency cutting of square tubes, round tubes, H shaped-Beam racetrack-shaped and elliptical tubes, as well as angle steel and channel steel.
Not only cut conventional tubes like round, square and rectangular tubes, and profiles like channel, angle and H-shaped steels, also cut special-shaped tubes easily like triangular, concave, Land C-shaped tubes, etc.
| Model | MT-T160 | MT-T220 | MT-T230 | MT-T350 |
|---|---|---|---|---|
| Pipe Section Shape | Round/Square Tube/Rectangular/ANGLE/I BEAM | Round/Square Tube/Rectangular/ANGLE/I BEAM | Round/Square Tube/Rectangular/ANGLE/I BEAM | Round/Square Tube/Rectangular/ANGLE/I BEAM |
| Tube Size Range | Round : Φ16- Φ155mm Square : □16- □155mm Rectangular : Long Side≤155mm | Round : Φ20- Φ220mm Square : □20- □220mm Rectangular : Long Side≤220mm | Round : Φ20- Φ220mm Square : □20- □220mm Rectangular : Circumcircle Φ≤220mm | Round : Φ20- Φ345mm Square : □20- □240mm Rectangular : Circumcircle Φ≤345mm |
| Maximum Length of Pipe | 6.3m | 6.3m | 6.5m/9.2m | 6.5m/9.2m |
| Maximum Weight of Pipe | 100Kg 16Kg/m | 200Kg 30Kg/m | 200Kg 30Kg/m | 500Kg 83Kg/m |
| Maximum Blanking Length | 2m | 2m | 2m | 2m |
| Shortest Remnant | 150mm | 150mm | 200mm | 200mm |
| Positional Accuracy | ±0.03mm | ±0.03mm | ±0.03mm | ±0.03mm |
| Re-positional Accuracy | ±0.02mm | ±0.02mm | ±0.02mm | ±0.02mm |
| Chuck Max Speed | 80r/min | 80r/min | 120r/min | 120r/min |
| Max Speed of Chuck Feed Axis | 90m/min | 90m/min | 120r/min | 120r/min |
| Max Speed of Laser Head Axis | 90m/min | 90m/min | 90m/min | 90m/min |
| Max Accelerated Speed of Chuck Feed Axis | 1G | 1G | 1G | 1G |
| Max Accelerated Speed of Laser Head Axis | 1G | 1G | 1G | 1G |
| Max Accelerated Speed of Z Axis | 60m/min | 60m/min | 60m/min | 60m/min |
